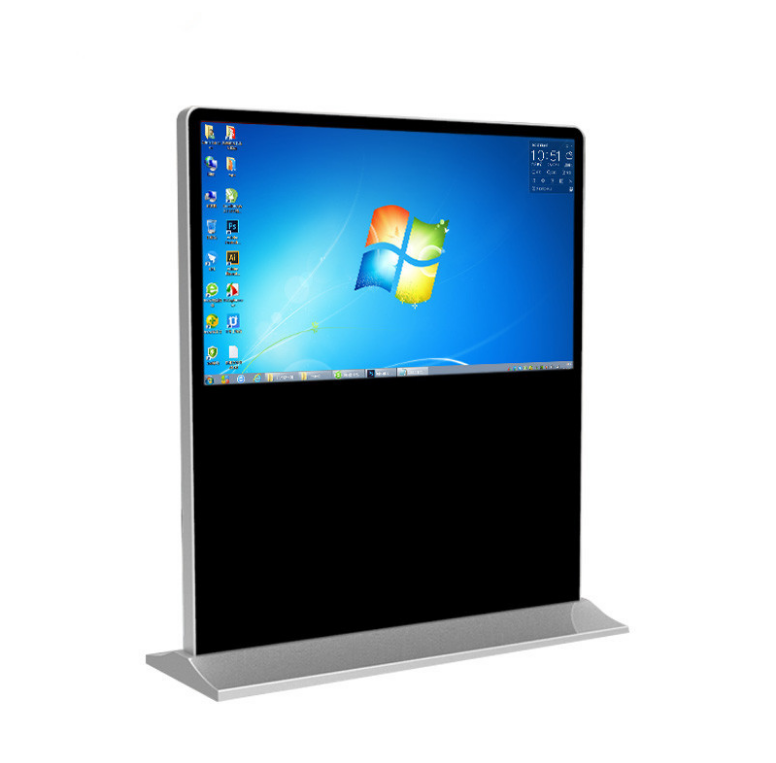

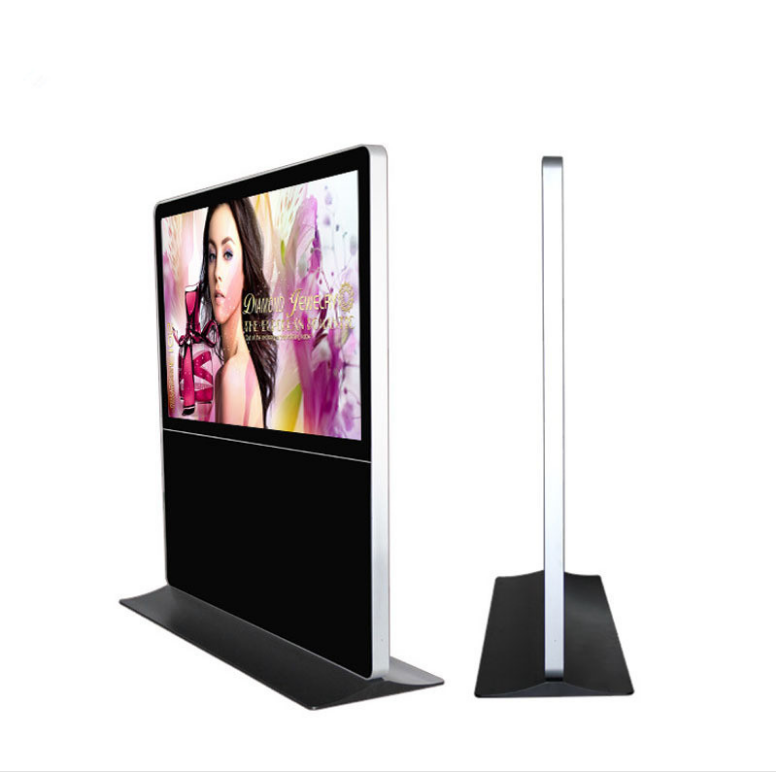

43/49/55 lnch horizontal touch screen floor stand display
1. Android or PC Operating System are optional; Center management is available.
2. Integrated/I3/ I5/ I7 CPU is optional.
3. Touch foil, IR touch and Capacitive touch are optional.
4. Adopt newest A+LCD screen,with high contrast ration,high brightness,last longer and work better.
5. Ultra thin design.
6. Warranty: 2 years
2. Integrated/I3/ I5/ I7 CPU is optional.
3. Touch foil, IR touch and Capacitive touch are optional.
4. Adopt newest A+LCD screen,with high contrast ration,high brightness,last longer and work better.
5. Ultra thin design.
6. Warranty: 2 years
| Panel Details | |
| Screen size | 49lnch |
| Resolution | 1920 (RGB) x 1080 (FHD) |
| Display size | 1073.78 604 mm (H V) |
| Visual size | 1078.4 608.6 mm (H V) |
| Brightness (CD /m2) | 400 (Typ.) |
| Best Angle | full Angle |
| Visual Angle | 178/178 (Min.)(CR 10) |
| Point distance | 0.227mm (H) x 0.227mm (W) |
| Quantity of colors | 16.7m /1.07B, 95% [CIE1931] |
| Constract | 1400:1 |
| Refresh frequency | 60Hz |
| Signal system | LVDS (2 ch, 10-bit), terminals, 51 pins |
| Supply voltage | 12.0V (Typ.) |
| storage temperature | - 20 ~ 60 ° C temperature: 0 ~ 50 ° C |
| Screen type | LCD module, a-Si TFT-LCD. |
| Pixel configuration | RGB vertical bar |
| Appearance size | 1459.2 * 830 * 31.4mm (H * V * D) |
| Surface preparation | Haze (3%), Hard coating (1H) |
| Optical mode | IPS, often black display, transmission type |
| Response speed | 6 (Typ.)(G to G) ms |
| Backlight type | WLED, 30K hours, no drive |
| Andriod Configurantion | |
| CPU | Quad-core/Octa-core |
| RAM | 1G/2G/4G optional |
| ROM(Internet Memory) | 8G/16G/32G optional |
| OS | Andriod 4.4/5.1/6.0/7.1 optional |
| PC Configurantion | |
| CPU | I3/I5/I7 Intel 1037U optional |
| RAM | 4G/8G optional |
| Hard Disk | 500GB HDD or 64/120/240GB SSD |
| OS | Window 7/10 optional |
