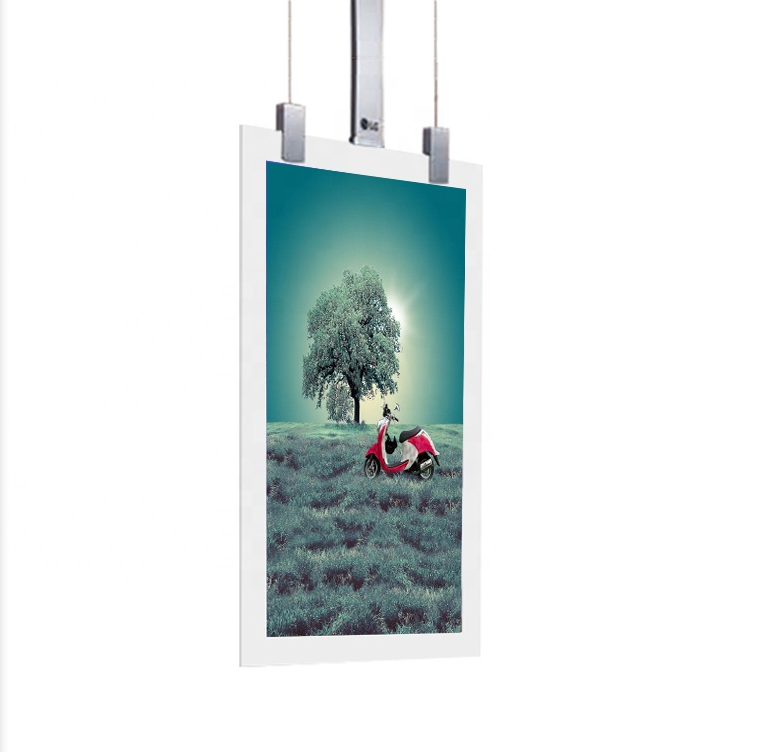

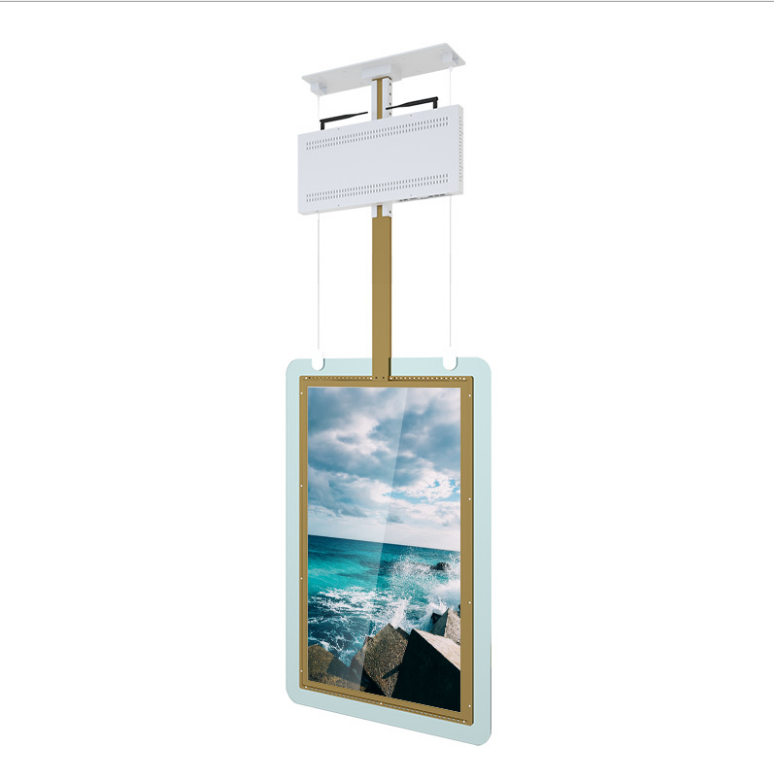

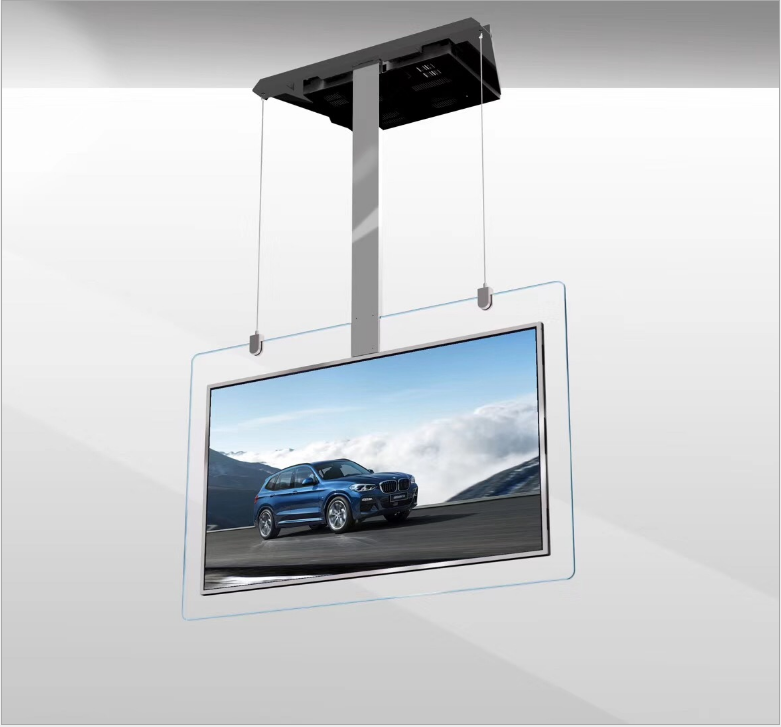

55lnch double-sided hanging ultra thin advertising display

Products Details

1. Android or PC Operating System are optional; Center management is available.
2. Integrated/I3/ I5/ I7 CPU is optional.
3. Adopt newest A+LCD screen,with high contrast ration,high brightness,last longer and work better.
4. Ultra thin design.
5. 2k/4k resolution optional



Panel Details
Screen size 55lnch
Resolution 1920 (RGB) x 1080 (FHD)
Display size 1209.6 680.4mm (H V)
Visual size 1214.6 685.4mm (H V)
Brightness (CD /m2) 400-2000nits optional (Typ.)
Best Angle full Angle
Visual Angle 178/178 (Min.)(CR 10)
Point distance 0.227mm (H) x 0.227mm (W)
Quantity of colors 16.7m /1.07B, 95% [CIE1931]
Constract 1400:1
Refresh frequency 60Hz
Signal system LVDS (2 ch, 10-bit), terminals, 51 pins
Supply voltage 12.0V (Typ.)
storage temperature - 20 ~ 60 ° C temperature: 0 ~ 50 ° C
Screen type LCD module, a-Si TFT-LCD.
Pixel configuration RGB vertical bar
Appearance size 1233.4 * 706.8 * 15.4 (H * V * D)
Surface preparation Haze (3%), Hard coating (1H)
Optical mode IPS, often black display, transmission type
Response speed 6 (Typ.)(G to G) ms
Backlight type WLED, 30K hours, no drive



  Andriod Configurantion
CPU     Quad-core/Octa-core
RAM 1G/2G/4G optional
ROM(Internet Memory) 8G/16G/32G optional
OS Andriod 4.4/5.1/6.0/7.1 optional
PC Configurantion
CPU I3/I5/I7 Intel 1037U optional
RAM 4G/8G optional
Hard Disk 500GB HDD or 64/120/240GB SSD
OS Window 7/10 optional
